A Deep Dive into Fire Shutter Doors: Definition and Construction Techniques

Abstract

This paper delves into the concept of fire shutter doors, elucidating their definition, functionality, and the construction techniques employed in their manufacturing and installation. By analyzing the structural components, operational mechanisms, and safety features of fire shutter doors, this study aims to provide a comprehensive understanding of their role in modern building safety.

Keywords

Fire Shutter Doors; Construction Techniques; Structural Components; Safety Features

1. Introduction

In the realm of modern architecture, fire safety is a paramount concern. Fire shutter doors, as critical components of building fire protection systems, play a vital role in preventing the spread of fire and smoke, thereby safeguarding lives and property. This paper seeks to unravel the complexities surrounding fire shutter doors, exploring their definition, construction techniques, and the factors that contribute to their effectiveness.

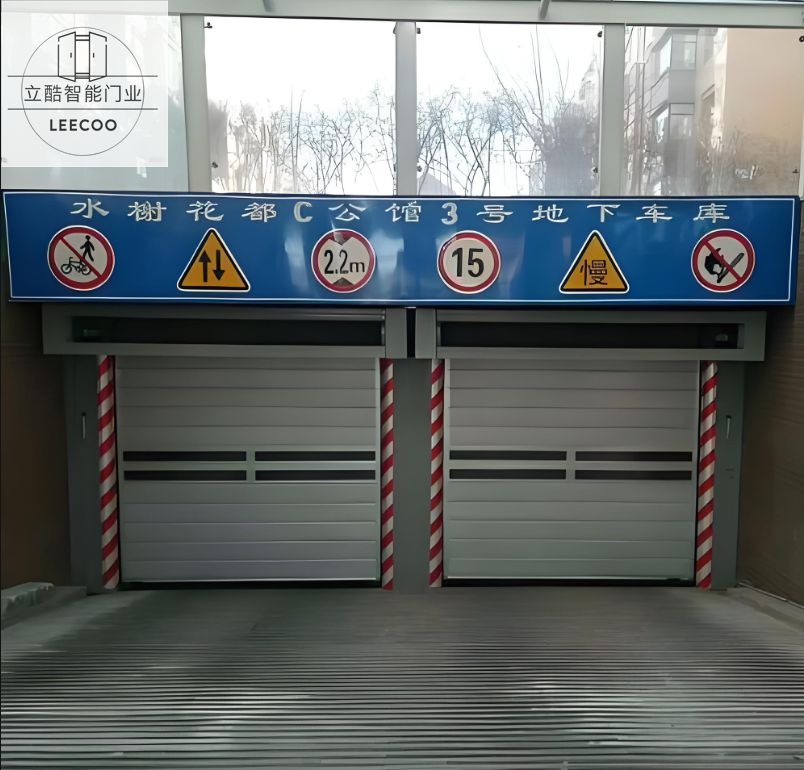

2. Definition and Functionality of Fire Shutter Doors

2.1 Definition

Fire shutter doors are specialized fire - resistant barriers designed to seal off openings in walls, partitions, or ceilings during a fire emergency. They are constructed from materials that can withstand high temperatures for a specified period, typically ranging from 0.5 to 4 hours, as per different fire - resistance ratings. These doors are equipped with automatic or manual control systems that allow them to close rapidly in the event of a fire, preventing the passage of flames, heat, and smoke.

2.2 Functionality

The primary function of fire shutter doors is to compartmentalize a building, limiting the spread of fire to specific areas. This not only provides occupants with more time to evacuate safely but also facilitates firefighting operations by creating fire - resistant barriers that can be used to isolate the fire source. Additionally, fire shutter doors help to maintain the integrity of escape routes by keeping them free from smoke and flames, ensuring that occupants can exit the building without being exposed to life - threatening hazards.

3. Structural Components of Fire Shutter Doors

3.1 Curtain

The curtain is the main movable part of the fire shutter door. It is typically made of galvanized steel or other fire - resistant materials. The thickness and composition of the curtain vary depending on the required fire - resistance rating. For example, a curtain designed for a 2 - hour fire - resistance rating may consist of multiple layers of steel with a special fire - resistant coating. The curtain is rolled up around a shaft when the door is in the open position and unrolled to cover the opening during a fire emergency.

3.2 Shaft

The shaft is a cylindrical component that supports the curtain and allows it to roll up and down smoothly. It is usually made of high - quality carbon structural steel, such as tubes with specifications like Φ140, Φ165, Φ219, and Φ273. The diameter and wall thickness of the shaft are determined based on the load - bearing capacity required for the specific fire shutter door.

3.3 Motor/Chain

High - quality motors are used to drive the operation of fire shutter doors. These motors are designed to run stably and can lift the curtain to a height of up to 6 meters with a lifting force of up to 600KG. In the event of a power outage, the door can still be operated manually by pulling a chain, ensuring that it can be closed even in emergency situations.

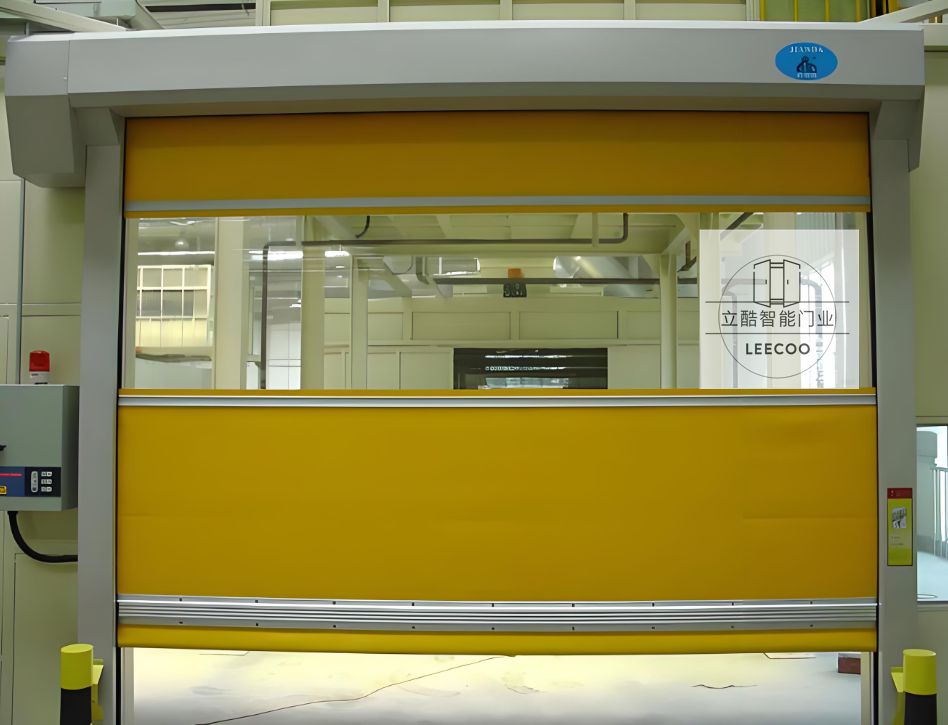

3.4 Guides

Guides are installed on both sides of the fire shutter door opening to keep the curtain in place during its movement. They are made of 1.5mm or 2.0mm galvanized steel plates that are bent into shape. The upper end of the guides has a special ( horn - shaped opening) design to facilitate the smooth entry and exit of the curtain. Inside the guides, custom - made: ethylene - propylene - diene monomer rubber strips) are embedded to provide excellent sound - deadening effects.

3.5 Bottom Beam

The bottom beam is located at the bottom of the curtain and provides additional stability and support. It is made of 1.5mm galvanized steel plates that are bent into a C - shaped clamp, with a rubber strip in the middle, forming a bottom beam with a thickness of 75mm. This design enhances the door's wind - resistance and dust - blocking capabilities.

4. Construction Techniques of Fire Shutter Doors

4.1 Installation Process

4.1.1 Guide Installation

The first step in the installation of a fire shutter door is to determine the installation positions of the guides on both sides of the door opening. A plumb line is used to mark the guide datum line, and a cross line is drawn for the fixing bolts of the guide connectors. The guides should extend beyond the ceiling by at least 75cm. Holes are then drilled in the wall columns using an impact drill for the expansion bolts that will secure the guide connectors. The spacing between the connectors should not exceed 600mm, and they should be 100mm away from the ends of the guides. After fixing a few connectors at the top and bottom, the guides are attached, and their verticality is adjusted and checked. The remaining connectors are then installed, and each connector is spot - welded to the guide with at least 5 spot - welds, each with a width of no less than 5mm.

4.1.2 Shaft Installation

Based on the design center height of the shaft indicated in the detailed drawings, the center positions of the main and auxiliary support plates are marked on the columns or walls, and cross lines are drawn for the expansion bolts. A horizontal plastic tube is used to find the corresponding center positions of the auxiliary support plates and the cross lines for the auxiliary expansion bolt holes. After drilling the holes with an impact drill, the main support plate (with the drive motor bracket pre - connected and welded to it) is installed using nuts, spring washers, and flat washers to tighten the expansion bolts passing through the support plate holes. The auxiliary support plate is installed in a similar manner, but its center height is checked with a level tube to ensure it is consistent with the main support plate, with a horizontal tolerance within 1/300 of the opening height. If necessary, the support plate is adjusted and reinforced with supporting ribs.

4.1.3 Curtain Installation

Before installing the shaft, the hanging plates are positioned and attached to the shaft, and 4 - 6 curtain panels are installed on the hanging plates and tightly wound around the shaft with iron wires. The shaft, with the bearings and seats already mounted, is then inserted into the end holes of the shaft, aligned, and the bearing fixing bolts are tightened. After the shaft is installed, its position can be adjusted left and right, and its levelness is checked with a level and a level tube. Once adjusted, the shaft is fully welded to the light shaft, and the light shaft is fixed to the bearing with set screws. The chain is then fitted onto the sprockets on the support brackets, and the drive base is fixed. The chain is first put on the small sprocket, and then the fixing bolts are tightened. At this point, shaking the chain should cause the shaft to rotate.

4.2 Welding Techniques

Welding is a crucial process in the construction of fire shutter doors. It is essential that the welding does not leave gaps or seams on the surface of the door, as these can compromise its fire - resistance. The welding position must be flat and smooth to ensure the smooth operation of the door. High - quality welding is necessary to maintain the structural integrity and functionality of the fire shutter door.

4.3 Electrical Control System

The electrical control system of a fire shutter door is responsible for its automatic operation. It is designed to receive signals from fire detection devices, such as smoke detectors and heat detectors, and automatically lower the door in the event of a fire. The control system should be able to interface with the building's fire alarm system and follow a pre - set program to ensure the timely closure of the door. Additionally, the electrical control system should have manual override functions to allow for manual operation in case of a system failure or during maintenance.

5. Safety Features of Fire Shutter Doors

5.1 Manual Control

Fire shutter doors are equipped with manual control devices that allow them to be operated manually in the event of a power outage or system failure. The force required for manual operation should not exceed 50N to ensure that they can be easily operated by occupants in an emergency.

5.2 Delayed Drop Mechanism

When the fire shutter door is lowered to a height of 1.5 meters above the ground, a delayed drop mechanism is activated. This allows occupants to pass through the door opening safely before it fully closes. The gap between the door sill and the ground should not exceed 20mm when the door is fully closed.

5.3 Alarm System

An alarm system is integrated into the fire shutter door to alert occupants when the door is being lowered. This helps to prevent accidents and ensures that occupants are aware of the door's movement and can take appropriate action.

6. Conclusion

Fire shutter doors are essential components of modern building fire protection systems. Their ability to compartmentalize a building, limit the spread of fire, and provide safe escape routes for occupants makes them invaluable in safeguarding lives and property. By understanding the structural components, construction techniques, and safety features of fire shutter doors, architects, engineers, and building owners can make informed decisions when selecting, installing, and maintaining these critical safety devices. As building regulations and fire safety standards continue to evolve, the development of more advanced fire shutter door technologies will play a crucial role in enhancing the overall fire safety of buildings.
