Industrial Overhead Door Installation: Methods and Best Practices

Industrial overhead doors are critical components in warehouses, factories, and commercial facilities, offering security, thermal insulation, and operational efficiency. Their installation requires precision and adherence to safety standards, as improper setup can lead to malfunctions, safety hazards, or premature wear. This article explores the primary installation methods for industrial overhead doors, their suitability for different environments, and key considerations for a successful installation.

1. Types of Industrial Overhead Door Installation Methods

The choice of installation method depends on the building’s structural design, ceiling height, and intended use of the door. Below are the most common approaches:

a. Standard Lift Installation

• Description: The most traditional method, where the door travels vertically along tracks until it reaches the horizontal transition point, then moves parallel to the ceiling.

• Suitability: Ideal for facilities with sufficient headroom (at least 12–18 inches above the door opening). Common in standard warehouses and manufacturing plants.

• Advantages: Cost-effective, simple to install, and compatible with most door models.

• Limitations: Requires ample vertical space, making it unsuitable for low-ceiling environments.

b. Vertical Lift Installation

• Description: The door moves straight up along vertical tracks without horizontal transition, maximizing ceiling space usage.

• Suitability: Perfect for facilities with limited headroom but high ceilings, such as aircraft hangars or auto dealerships.

• Advantages: Saves horizontal space, allows full use of ceiling height, and supports heavy-duty doors.

• Limitations: More complex to install and typically requires reinforced structural support.

c. High Lift Installation

• Description: A hybrid approach combining vertical and horizontal tracks. The door ascends vertically before transitioning to horizontal tracks angled toward the ceiling.

• Suitability: Suitable for buildings with moderate headroom (18–36 inches) but a desire to utilize ceiling space for storage or equipment.

• Advantages: Balances space efficiency and installation complexity, often used in distribution centers.

• Limitations: Requires careful measurement to avoid track interference with ceiling structures.

d. Low Headroom Installation

• Description: Utilizes compact track systems and specialized hardware to minimize vertical space usage.

• Suitability: Designed for facilities with extremely low ceilings, such as underground parking garages or basements.

• Advantages: Maximizes usable space in constrained environments.

• Limitations: Limited to lighter-duty doors and may require custom hardware.

e. Follow the Roof Pitch Lift

• Description: Tracks follow the slope of the roof, allowing the door to clear obstructions like HVAC systems or pipes.

• Suitability: Used in buildings with angled ceilings or irregular architecture.

• Advantages: Adaptable to unique structural challenges.

• Limitations: Requires custom fabrication and expert planning.

2. Step-by-Step Installation Process

Regardless of the method, the installation process follows a general workflow:

1. Pre-Installation Assessment:

• Measure the door opening, headroom, and backroom (horizontal space behind the opening).

• Check for obstructions like lighting fixtures, sprinklers, or ductwork.

• Confirm structural integrity of the mounting surface (e.g., concrete, steel).

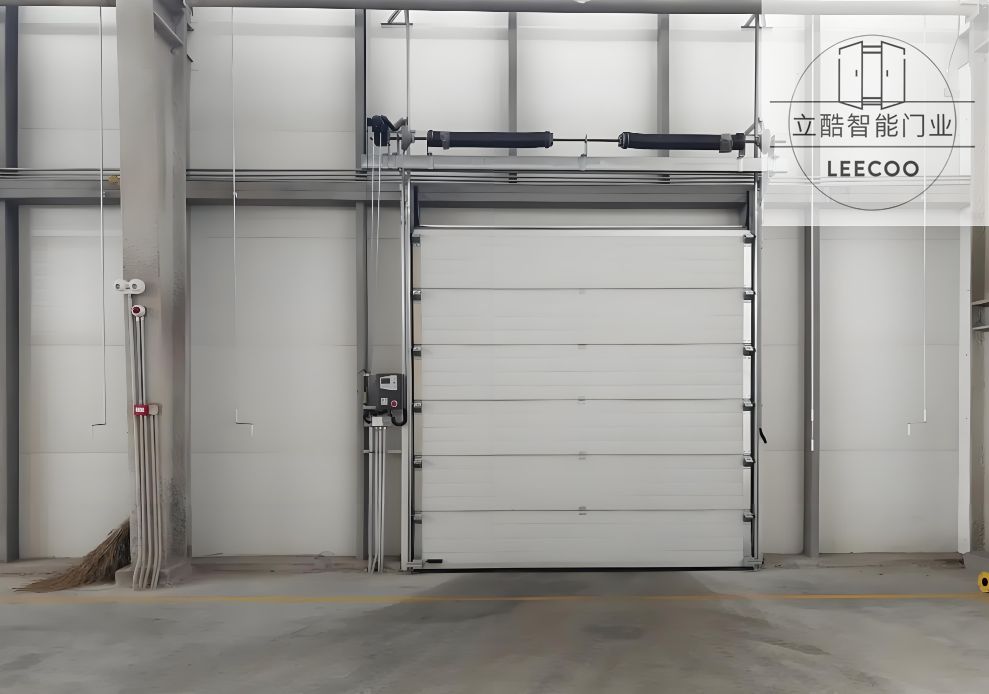

2. Track and Hardware Installation:

• Mount vertical tracks on both sides of the opening.

• Install horizontal tracks according to the chosen lift type (standard, high, etc.).

• Secure torsion or extension springs, ensuring proper tension for door weight.

3. Door Panel Assembly:

• Connect hinges and rollers to each section.

• Hang panels one by one onto the tracks, aligning them precisely.

4. Spring and Cable Adjustment:

• Balance the door manually to ensure smooth operation.

• Adjust spring tension to counteract the door’s weight (critical for safety).

5. Final Testing and Safety Checks:

• Test auto-reverse mechanisms (required by safety standards).

• Verify weatherstripping seal and insulation integrity.

• Lubricate moving parts and tighten all bolts.

3. Critical Safety and Compliance Considerations

• OSHA and ANSI Standards: Installations must comply with occupational safety regulations, including proper spring handling and emergency disconnect features.

• Weight Capacity: Never exceed the door’s rated capacity, as overloading can cause track deformation or spring failure.

• Professional Expertise: While DIY kits exist, industrial-grade doors often require certified installers due to their complexity and weight.

4. Maintenance Tips for Longevity

• Regularly inspect tracks for debris and alignment.

• Lubricate hinges, rollers, and springs biannually.

• Test safety features monthly (e.g., photo-eye sensors, bottom-edge reversals).

Conclusion

Selecting the right installation method for an industrial overhead door hinges on balancing spatial constraints, operational needs, and budget. Whether opting for a standard lift in a conventional warehouse or a custom follow-the-roof-pitch design in a unique facility, adherence to safety protocols and manufacturer specifications is non-negotiable. Proper installation not only ensures seamless operation but also extends the door’s lifespan, safeguarding both assets and personnel.

By understanding the nuances of each installation type and prioritizing precision, facilities can optimize their workflows while maintaining a safe and efficient environment.
